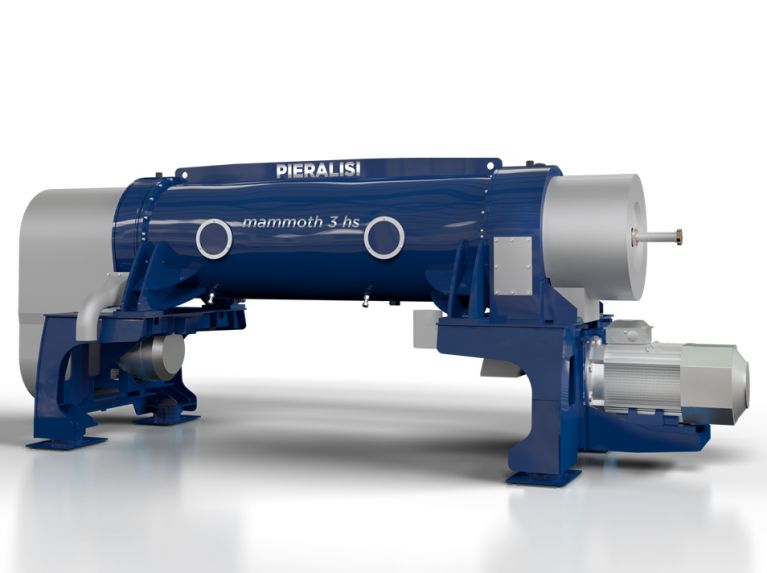

Decanter centrifuges MAMMOTH 570/2

MAMMOTH Series

The MAMMOTH Series decanter centrifuges provide solutions to all technological problems of solid-liquid and solid-liquid-liquid separation.
They are fitted with the following standard design features:

  • casing/frame design ensuring minimum levels of vibrations and extra-low noise levels;
  • slenderness ratio up to 5.26:1, providing very large clarification length and volume, a remarkable advantage for processing;
  • automatic lubrication of main bearings and vibration sensing and monitoring system;
  • stainless-steel of a high chemical-mechanical quality, according to processing requirements for all parts in contact with the product treated;
  • wear-protection in accordance with the level of abrasion of suspensions treated, e.g. with sintered Tungsten Carbide segments on the bowl coil, very hard materials for product feed zone and cake discharge (easily repositioned and/or replaced);
  • fully-electrical drive system with intelligent power flow by means of Rotovariator (Pieralisi patent) for automatic operations with minimum energy consumption;
  • specially-designed vibration suspension and filtering system to minimize stress;
  • control and monitoring system measuring the key processing values for the machine.

Download

    Models

      MAMMOTH 570/2

      Main motor power [kW] 45÷75
      Rotovariator power / Back Drive [kW] 15÷25
      Centrifugal force max x g 3060
      Slenderness ratio L/D 4.09
      Bowl diameter [mm] 570
      Hydraulic capacity [l/h] 65000
      Mass [kg] 5540
      Total length [mm] 4370
      Total width [mm] 1920
      Bowl revolution max [rpm] 3100
      Total height [mm] 1970

      MAMMOTH 570/3

      Main motor power [kW] 55÷90
      Rotovariator power / Back Drive [kW] 15÷25
      Centrifugal force max x g 3060
      Slenderness ratio L/D 5.26
      Bowl diameter [mm] 570
      Hydraulic capacity [l/h] 85000
      Mass [kg] 6500
      Total length [mm] 5050
      Total width [mm] 1920
      Bowl revolution max [rpm] 3100
      Total height [mm] 1970
The company reserves the right to change specifications without prior notification.

Detailed Technical Data Sheets containing features, dimensions and performance data are available. Please contact us.
